mrcImageDivideInfoForTomography is Eos's Command that outputs ROI information file for dividing mrcImage. Output file can be used by mrcImageROIs.

List of option

Option Essential/Optional Description Default
-i Essential Input: mrcImage NULL
-o Essential Output: ASCII NULL
-cut Optional Division start position 6
-d Optional The number of divisions of the axis 4
-h Optional Help


Execution example

------Input file's image------


Min

Max
Mean
SD

SE

0

65.5929
5.45036
12.3043

0.153804

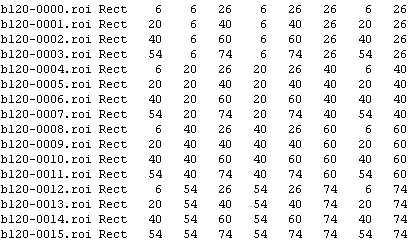

------Example of options only essential------


------Option -cut------

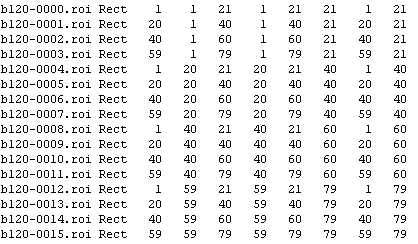

cut=1

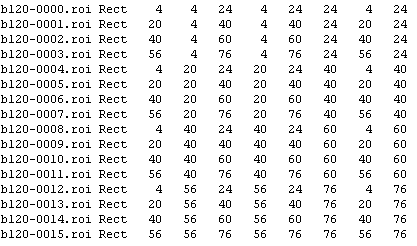

cut=4


------Option -d------

d=5
