mrcImageRandomParticlesImageCreate

mrcImageRandomParticlesImageCreate is Eos's Command.

List of option

Main option

Option	Essential/Optional	Description	Default
-i	Essential	Input: ASCII (File List)	stdin
-o	Essential	Output: mrcImage	stdout
-N	Optional	Size: (Nx, Ny)	(1024, 1024)
-seed	Optional	Input: Seed	0
-InterpolationMode	Optional	InterpolationMode	2
-c	Optional	ConfigurationFile	NULL
-m	Optional	Mode	0
-h	Optional	Help

If the same settings, it is the same result because it uses Pseudo-random number.

-m details

Value	Description
0

-i format

mrcFile1
mrcFile2
.
.

Execution example

Input file's data

Input-1VOM-2D.mrc
Input-121P-2D.mrc
Input-1B7T-2D.mrc

Input-1VOM-2D.mrc's image

Min Max Mean SD SE

0 (0, 0, 0) 49749.7 (27, 28, 0) 7212.9 8827.15 110.339

Input-121P-2D.mrc's image

Min Max Mean SD SE

0 (0, 0, 0) 30847.6 (43, 53, 0) 1105.85 3410.59 34.1059

Input-1B7T-2D.mrc's image

Min Max Mean SD SE

0 (0, 0, 0) 178250 (35, 57, 0) 14921.9 30087.2 475.72

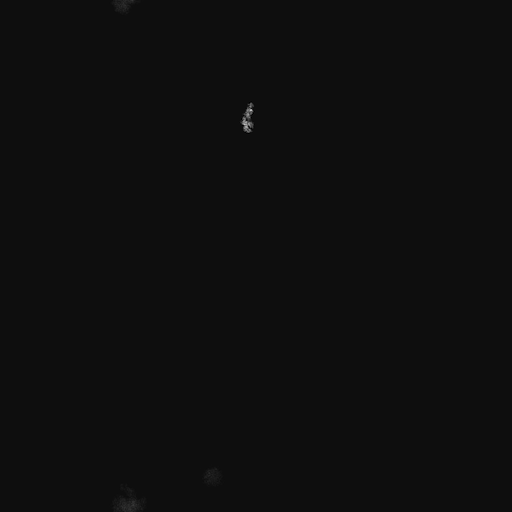

Example of options only essential

This image's size is half of original output file's one.

Size Min Max Mean SD SE

( 1024, 1024, 1) -12043.1 (499, 781, 0) 172346 (502, 803, 0) 111.487 2281.93 2.22844

Option -N

Case: N=(256, 256)

Size Min Max Mean SD SE

( 256, 256, 1) -12043.1 (127, 193, 0) 172346 (130, 215, 0) 1783.8 8994.67 35.1354

In the following, Setting at N=(256, 256)

Option -seed

Case: seed=1

Size Min Max Mean SD SE

( 256, 256, 1) -8000.95 (7, 191, 0) 171254 (10, 186, 0) 1783.43 8956.46 34.9862

Option -InterpolationMode

Case: InterpolationMode=0

Size Min Max Mean SD SE

( 256, 256, 1) 0 (0, 0, 0) 178250 (130, 215, 0) 1781.43 8963.02 35.0118

Case: InterpolationMode=1

Size Min Max Mean SD SE

( 256, 256, 1) 0 (0, 0, 0) 150569 (130, 215, 0) 1783.92 8764.39 34.2359

Case: InterpolationMode=3

Size Min Max Mean SD SE

( 256, 256, 1) -4.23359e+06 (122, 226, 0) 1.88336e+08 (130, 214, 0) 1.56278e+06 7.59862e+06 29682.1
