mrcImageDensityInfo

mrcImageDensityInfo is Eos's Command that gets density information (Pixel that have positive value) of mrcImage.

List of option

Main option

Option	Essential/Optional	NULL	Default
-i	Essential	Input: mrcImage	NULL
-o	Optional	Output: ASCII	NULL
-C	Optional	ContourLevel	10
-log	Optional	OutputDataFile	NULL
-m	Optional	Mode	0
-h	Optional	Help

-m details

Value	Description
+1	PercentageVolume
+2	CentreOfGravity
+4	Max
+8	SD around CentreOfGravity
+16	SD around Max

Execution example

------Input file's image------

Min Max Mean SD SE

0 65.5929 5.45036 12.3043 0.153804

------Option -o------

Output result is stored in the specified file.

------Option -m------

Case: m=1

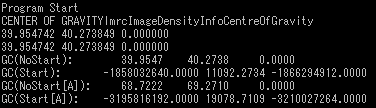

Case: m=2

Case: m=4

Case: m=8

Case: m=16

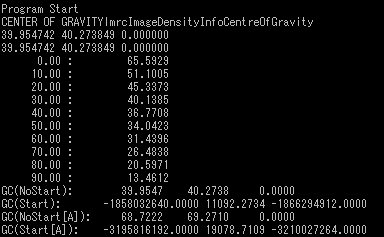

Case: m=3

Outputting the result of m=1 and m=2.

Example:

------Option -C------

Case: C=5

Case: C=15
