mrcImageProjection

mrcImageProjection is Eos's Command that that obtains the projection image from each direction.

List of option

Main option

Option	Essential/Optional	NULL	Default
-i	Essential	Input: mrcImage	NULL
-o	Essential	Output: mrcImage	NULL
-m	Optional	Mode	0
-h	Optional	Help

-m details

Value	Description
0	x-y sufacae along z-axis [3D to 2D]
1	y-z sufacae along x-axis [3D to 2D]
2	x-z sufacae along y-axis [3D to 2D]
3	x-y sufacae to y-axis [2D/3D to 1D]
4	x-y sufacae to x-axis [2D/3D to 1D]
5	x-y sufacae to z-axis [2D/3D to 1D]

Execution example

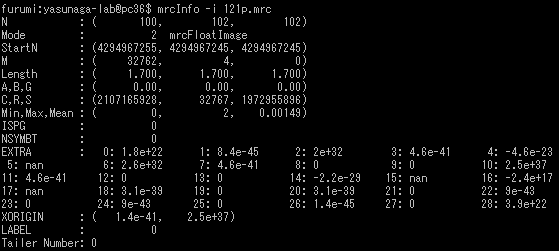

------Input file------

Min Max Mean SD SE

0 2 0.00148981 0.043511 4.26578e-05

------Option -m------

Case: m=0

Min Max Mean SD SE

0 13 0.151961 0.8682 0.00859646

Case: m=1

Min Max Mean SD SE

0 14 0.148981 0.866363 0.00849375

Case: m=2

Min Max Mean SD SE

0 13 0.151961 0.882646 0.0087395

Case: m=3

Min Max Mean SD SE

0 108 15.1961 31.2724 3.09643

Case: m=4

Min Max Mean SD SE

0 108 15.5 31.4097 3.14097

Case: m=5

Min Max Mean SD SE

0 117 15.5 32.2082 3.22082
