mrcImageRadialDistribution

mrcImageRadialDistribution is Eos's Command that outputs Radial Distribution.

List of option

Option	Essential/Optional	Description	Default
-i	Essential	Input: mrcImage	NULL
-o	Optional	Output: ASCII	NULL
-O	Optional	Output	NULL
-centre	Optional	Center position: [Pixel]	Cx=0.0 Cy=0.0
-Avg	Optional	Averaged Intensity
-Inv	Optional	Inversed Intensity
-h	Optional	Help

Execution example

------Input file's image------

Min Max Mean SD SE

-65.0178 94.4699 4.85274 20.4635 0.255794

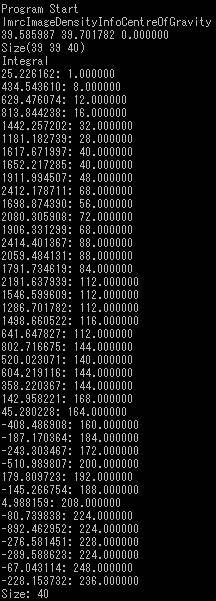

------Example of options only essential------

Output datas as the following.

　

------Option -o,-Oを設定------

Output data on screen	Output data of -o	Output data of -O

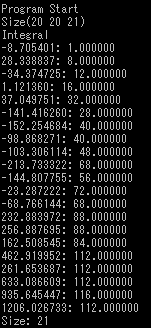

------Option -centre------

Output data on screen	Output data of -o

------Option -Avg------

Output data on screen	Output data of -o

------Option -Inv------

Output data on screen	Output data of -o
