mrcImageSinogramCorrelation

mrcImageSinogramCorrelation is Eos's Command that performs Sinogram Correlation.

List of option

Main option

Option	Essential/Optional	Description	Default
-i	Essential	Input設定: mrcImage(Sinogram)	NULL
-r	Essential	Reference: mrcImage(Sinogram)	NULL
-o	Essential	Output: mrcImage	NULL
-w	Optional	Weigth for Mode: 1(w0th, w1st, w2nd)	(1.0, 0.0, 0.0)
-T	Optional	threshold for Mode: 2	0.0
-LTR	Optional	ratio of threshold for LengthMode: 1	1.0
-LCT	Optional	Optional  :threshold for LengthCorrelation	0.0
-wL	Optional	Weight for LengthCorrelation	1.0
-c	Optional	ConfigurationFile	NULL
-m	Optional	Mode	0
-LM	Optional	Length Mode: for LengthCorrelation	0
-LCM	Optional	Mode: for LengthCorrelationMode	0
-LTM	Optional	Length Threshold Mode: for LengthCorrelation	0
-M	Optional	Mode: for Correlation	0
-h	Optional	Help

-m details

Value	Description
0	simple Correlation
1	weight Correlation (addition to derivation)
2	threshold Correlation (addition to derivation)
3	power weight Correlation (addition to derivation : -LM=1 -LCM=2)

-LM details

Value	Description
0	without Length Correlation
1	addition to Length Correlation (-LCM)

-LCM details

Value	Description
0	weight (-wL , -LTM , -LTR)
1	threshold (-LTM , -LTR , -LCT)
2	power weight (-LTM , -LTR , -wL)

-LTM details

Value	Description
0	Multiply derivationMax and ratio(-LTR)
1	Average of all derivation

Execution example

Input file image

Before Sinogram Transformation

Min Max Mean SD SE

0 (0, 0, 0) 65535 (12, 1, 0) 22776.7 23232.9 136.901

Reference file image

Before Sinogram Transformation

Min Max Mean SD SE

0 (0, 0, 0) 65535 (77, 34, 0) 22776.7 23232.9 136.901

Example of options only essential

Min Max Mean SD SE

-0.876087 (197, 162, 0) 1 (179, 1, 0) 0.0891167 0.276684 0.000768567

Input fileはReference fileの鏡像であるので、180度回転のところで相関値は1になる

Option -LM

Case: LM=1

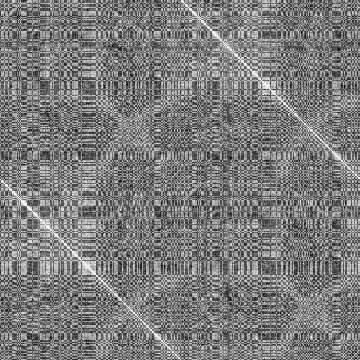

Case: No other settings

Min Max Mean SD SE

-0.820738 (267, 196, 0) 2 (180, 0, 0) 0.55432 0.524071 0.00145575

Case: LTR=0.5

Min Max Mean SD SE

-0.0534014 (297, 316, 0) 2 (180, 0, 0) 0.993997 0.295261 0.000820169

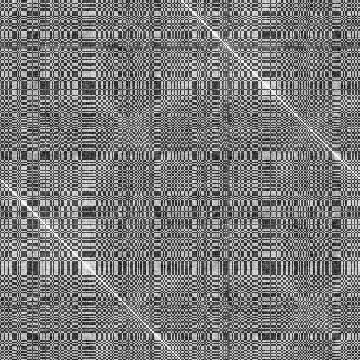

Case: wL=2

Min Max Mean SD SE

-0.787405 (267, 196, 0) 3 (180, 0, 0) 1.01952 0.928614 0.00257948

Option -LCM

Case: LCM=1, LM=1

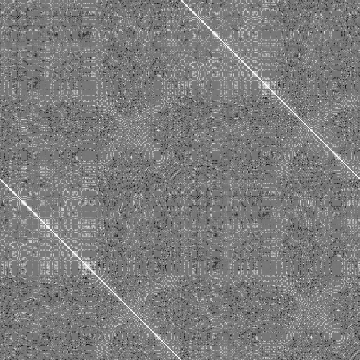

Case: No other settings

Min Max Mean SD SE

-0.876087 (197, 162, 0) 1 (179, 1, 0) 0.0431111 0.18601 0.000516696

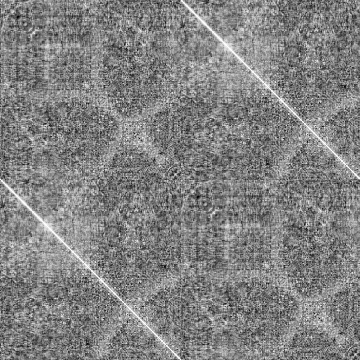

Case: LTR=0.5

Min Max Mean SD SE

-0.876087 (197, 162, 0) 1 (179, 1, 0) 0.0832207 0.253434 0.000703982

Case: LCM=2, LM=1, LTM=1

Case: No other settings

Min Max Mean SD SE

0.352012 (197, 162, 0) 1.41421 (180, 0, 0) 1.03461 0.136719 0.000379775

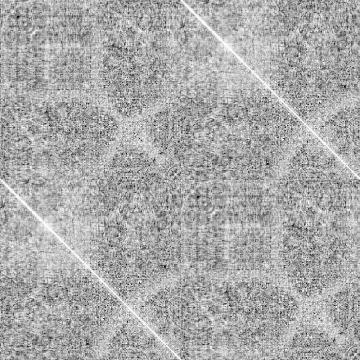

Case: w=(1.0, 0.5, 0)

Min Max Mean SD SE

0.433757 (197, 162, 0) 1.31951 (179, 1, 0) 1.02611 0.109535 0.000304265

Option -LTM

Case: LTM=1, LM=1

Case: No other settings

Min Max Mean SD SE

0.123913 (197, 162, 0) 2 (180, 0, 0) 1.08912 0.276684 0.000768567

Case: wL=2

Min Max Mean SD SE

1.12391 (197, 162, 0) 3 (180, 0, 0) 2.08912 0.276684 0.000768567

Option -m

Case: m=3, LCM=2, LM=1, LTM=1

Case: No other settings

Min Max Mean SD SE

0.352012 (197, 162, 0) 1.41421 (180, 0, 0) 1.03461 0.136719 0.000379775

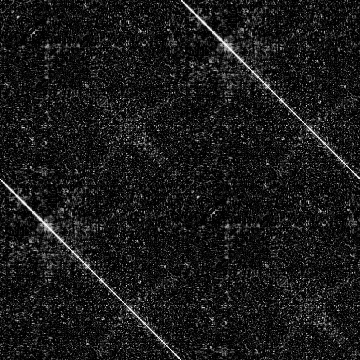

Case: w=(2, 0, 0)

Min Max Mean SD SE

1 (310, 0, 0) 1.25992 (180, 0, 0) 1.0262 0.0346682 9.63005e-05
