mrcRefHighPassFilter

mrcRefHighPassFilter is Eos's Command.

List of option

Main option

Option	Essential/Optional	Description	Default
-i	Essential	Input: mrcImage	NULL
-o	Essential	Output: mrcImage	NULL
-hvp	Optional	HalfValuePoint	1.0
-w	Optional	WidthOfDumping	1.0
-c	Optional	ConfigurationFile	NULL
-m	Optional	Mode: Default value 0 is undefined.	0
-h	Optional	Help

-m details

Value	Description
1	Step filter (-hvp is required)
2	Cos filter (-hvp, -w are required)
3	Exp filter (-hvp is required)
+4	For 2D Image

Execution example

Input file image

z=156 ~ 170

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -1503.16 (14, 26, 131) 36873.4 (28, 21, 158) 6192.24 6388.63 8.93564

Option -m

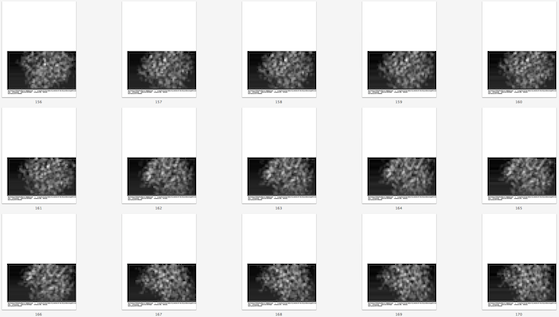

Case: m=1

z=156 ~ 170

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -1.82659e+18 (14, 26, 131) 1.89036e+19 (32, 16, 84) 3.272e+18 3.26175e+18 4.56214e+15

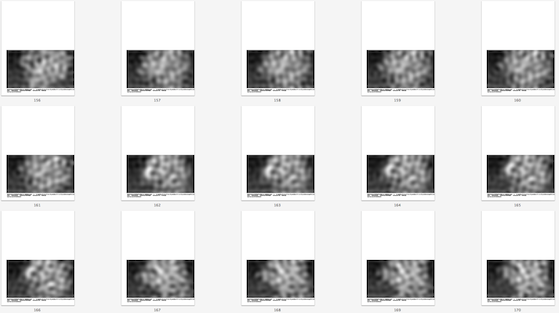

Case: m=1, hvp=0.2

z=156 ~ 170

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -1.08307e+17 (7, 25, 153) 5.24547e+17 (39, 16, 70) 1.3531e+17 1.19962e+17 1.67789e+14

Case: m=2

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -2.54455e+22 (40, 27, 104) 2.3245e+22 (25, 27, 99) 2.40374e+17 4.69365e+21 6.5649e+18

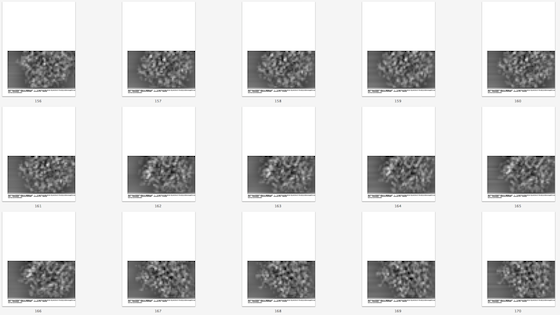

Case: m=2, w=1.9

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -7.85692e+20 (32, 15, 166) 1.16618e+21 (40, 23, 314) 1.23131e+15 1.78778e+20 2.50053e+17

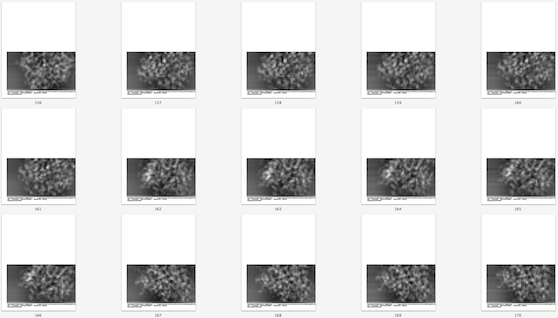

Case: m=2, w=1.9, hvp=0.97

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -2.40899e+21 (27, 24, 29) 4.40901e+21 (39, 18, 67) 4.33748e+15 6.8084e+20 9.52277e+17

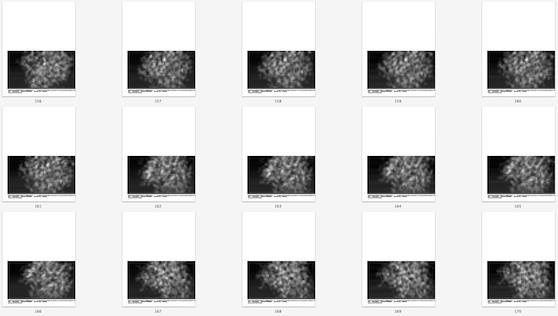

Case: m=3

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -1.15834e+18 (5, 23, 310) 1.34054e+19 (32, 16, 84) 2.58957e+18 2.43189e+18 3.40143e+15

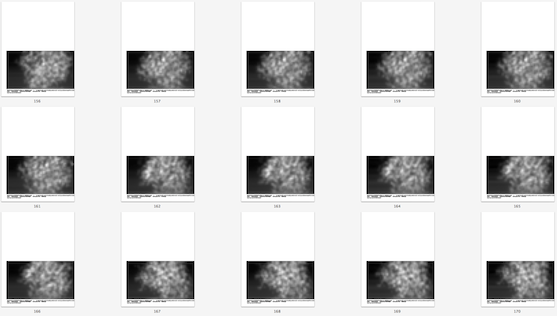

Case: m=3, hvp=0.2

Size Mode Min Max Mean SD SE

( 56, 28, 326) mrcFloatImage -4.02049e+21 (55, 23, 310) 4.42657e+22 (32, 16, 84) 1.2123e+22 9.77258e+21 1.36687e+19
