mrcRefImagepwzCorSmoothing

mrcRefImagepwzCorSmoothing is Eos's Command.

List of option

Main option

Option	Essential/Optional	Description	Default
-i	Essential	Input: mrcImage	NULL
-o	Essential	Output: mrcImage	NULL
-N	Optional	Number of peaks	20
-dp	Optional	Delta phi:[Degree]	166.1538462
-dz	Optional	Delta z:[A]	27.3
-c	Optional	ConfigurationFile	NULL
-m	Optional	Mode	0
-h	Optional	Help

-m details

Value	Description
0

Execution example

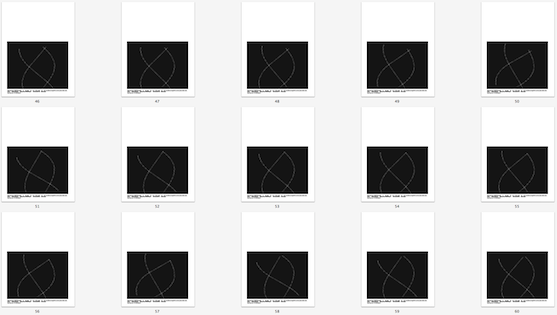

Input file image

z=46 ~ 60

Size Mode Min Max Mean SD SE

( 90, 70, 106) mrcFloatImage -1.28686 (30, 27, 1) 15 (8, 0, 0) 0.118695 0.579571 0.000709225

Example of options only essential

Min Max Mean SD SE

-0.032329 (33, 54, 0) 0.220869 (14, 22, 0) 0.0306603 0.034506 0.00043717

Option -N

Case: N=40

Min Max Mean SD SE

-0.0330861 (43, 33, 0) 0.277228 (55, 65, 0) 0.0613205 0.047894 0.000606789

Option -dp

Case: dp=120

Min Max Mean SD SE

-0.023282 (16, 25, 0) 0.199363 (6, 51, 0) 0.0306603 0.0363412 0.000460421

Option -dz

Case: dz=40

Min Max Mean SD SE

-0.0239324 (19, 24, 0) 0.204121 (7, 8, 0) 0.0306603 0.0349063 0.000442241
