pdbRotation

pdbRotation is Eos's Command that rotates PDB file.

List of option

Main option

Option	Essential/Optional	Description	Default
-i	Essential	Input: PDB	NULL
-o	Essential	Output: PDB	NULL
-ZXY	Optional	Rotation Order: Z-axis→X-axis→Y-axis	0.0　0.0　0.0
-ZYX	Optional	Rotation Order: Z-axis→Y-axis→X-axis	0.0　0.0　0.0
-YXZ	Optional	Rotation Order: Y-axis→X-axis→Z-axis	0.0　0.0　0.0
-XYZ	Optional	Rotation Order: X-axis→Y-axis→Z-axis	0.0　0.0　0.0
-EA	Optional	Euler Angle	RotMode　0.0　0.0　0.0
-h	Optional	Help

Rotation Order details

1st digit: Setting the rotation axis of the first
2nd digit: Setting the order-1 of the rotation axis
	O: Order Z -> Y-> X
	E: Order Z -> X-> Y
3rd digit: Setting the order-2 of the rotation axis
	Y: Keep the order
	N: Reverse the order
4th digit: Setting rotation method
	S: Rotate the object
	N: Move the coordinates

Execution example

------Input file's image------

Input file's details by pdbInfo

*There isn't difference between input and output by default.

------Option -ZXY------

Case: z-axis、x-axis、y-axis are 10	Case: z-axis、x-axis、y-axis are 100

------Option -ZYX------

Case: z-axis、y-axis、x-axis are 10	Case: z-axis、y-axis、x-axis are 100

------Option -YXZ------

Case: y-axis、x-axis、z-axis are 10	Case: y-axis、x-axis、z-axis are 100

------Option -XYZ------

Case: x-axis、y-axis、z-axis are 10	Case: x-axis、y-axis、z-axis are 100

------Compare images of each option------

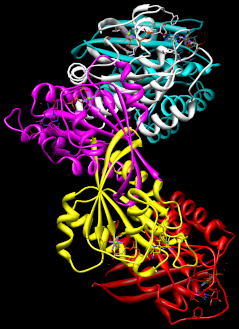

Case: Setting 10 to all axis data	Case: Setting 100 to all axis data
White…Input file Pink…Option　-ZXY Blue…Option　-ZYX Yellow…Option　-YXZ Red…Option　-XYZ

------Option -EA------

Option -EA XENS 30 30 30

*White…Input image、Pink…Output image
