pdbShapeFit

From EosPedia
Jump to: navigation, search

pdbShapeFit is Eos's Command.


List of option

Main option

Option Essential/Optional Description Default
-ipdb Essential Input: PDB (Atom Model) NULL
-imrc Essential Input: mrcImage(3D) NULL
-C Essential Contour 0.0
-CM Optional ContourMode: refer to mrcImageContourSurfaceCreate 0
-omrc Optional Output: mrcImage NULL
-otxt Optional Output: ASCII stdout
-opdb Optional Output: PDB NULL
-xmin Optional x min 0
-xmax Optional x max 0
-xd Optional delta x 1
-ymin Optional y min 0
-ymax Optional y max 0
-yd Optional delta y 1
-zmin Optional z min 0
-zmax Optional z max 82
-zd Optional delta z 1
-EA Optional Euler Angle: Rotation Mode ZOYS
-phimin Optional phi min: [degree] 0
-phimax Optional phi max: [degree] 194
-phid Optional delta phi: [degree] 2
-psimin Optional psi min: [degree] 0
-psimax Optional psi max: [degree] 0
-psid Optional delta psi: [degree] 2
-thetamin Optional theta min: [degree] 0
-thetamax Optional theta max: [degree] 0
-thetad Optional delta theta: [degree] 2
-PSM Optional PDB SurfaceMode: refer to pdbSurface 0
-order Optional order: refer to pdbSurface 1.7
-refine Optional refine: refer to pdbSurface 2
-size Optional size: refer to pdbSurface 3
-weight Optional weight: refer to pdbSurface 100
-mergin Optional mergin: refer to pdbSurface 3.0
-thres Optional threshold: refer to pdbSurface 0.0
-I Optional Black is High Density.
-Centre Optional Filament-axis is x=0, y=0
-c Optional ConfigurationFile NULL
-m Optional Mode 0
-h Optional Help 　


    -ipdb   : Filename : An atomic model to be fitted (PDB)
    -imrc   : Filename : 3-D density map (mrc-formated)
    -omrc   : Filename : fitting score map (MRC)
                         z=0: a max-score map of an phi-z plane which includes a max score point.
                              The max score mean a maximum score in all x-y-psi-theta plane with specific values of phi and z.
                         z=1: a max-score map of an psi-theta plane which includes a max score point.
                              The max score mean a maximum score in all x-y plane with specific values of psi, theta, phi and z.
                         z=2: a score map of an x-y plane which includes a max score point.
    -otxt   : Filename : fitting results (Text)
    -opdb   : Filename : An atomic model with a maximum score after fitting
    -x|y|zmin   : Initial value of z (should <= zmax)
    -x|y|zmax   : Final   value of z
    -x|y|zd     : Delta z for fitting (should !=0)
    -phi|psi|thetamin : Initial value of phi (should <= phimax; initial value of phi is 0)
    -phi|psi|thetamax : Final value of phi  (should !=0)
    -phi|psi|thetad   : Delta phi for fitting (should >0)
    -C      : Contour level of map file
    -Inverse: Protein has high density on the image
    -Centre : Filament-axis in an inPDBFile is along the line of x=0, y=0
    -EA     : Euler Angle Set : ZOYS: z -> y -> x


-CM, -PSM details

cf. pdbSurface(-m)


-m details

Value Description
0 Count the atom number inside the contour.


Execution example

Input file's image

-ipdbのfile's image

Gravity Centre(CA)

Atom far from Centre(CA)

Atom far from Centre(CA, Axis)

6.053012e+00 9.408175e+00 2.622422e+01

3.286665e+01

24.77 22.88 23.78


-imrcのfile's image

xy-plane

yz-plane

Min

Max
Mean
SD

SE

0 (0, 0, 0)

3500.79 (49, 53, 30)
11.0585
118.123

0.118123


Case: Options only essential

Case: C=1000

-omrc 's image

Min

Max
Mean
SD

SE

0 (18, 0, 0)

17460.5 (57, 81, 0)
1189.56
2672.72

29.6348

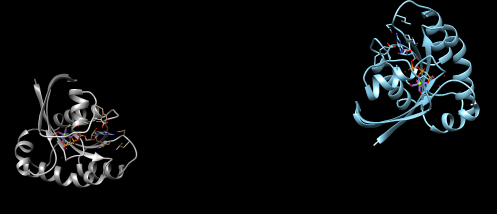

-opdb 's image

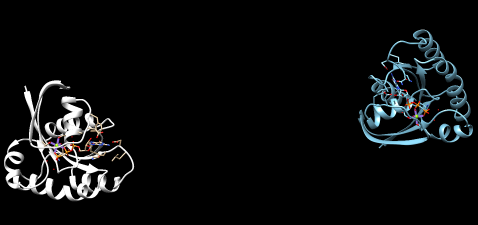

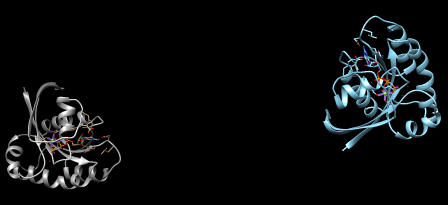

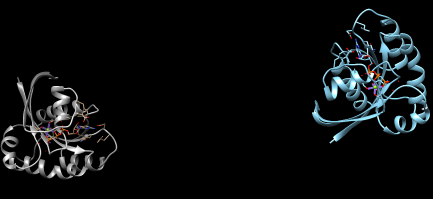

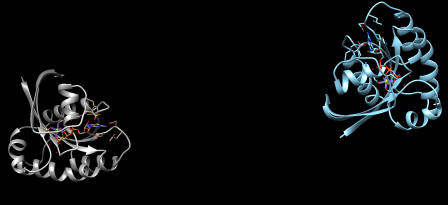

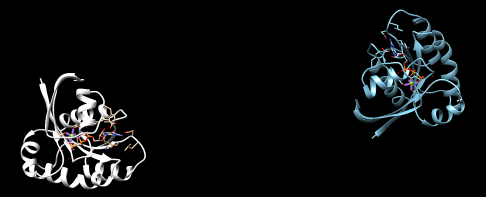

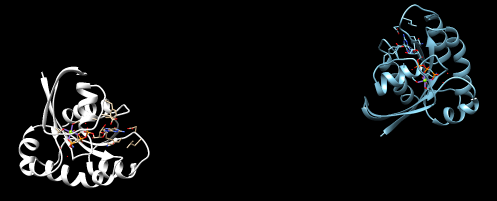

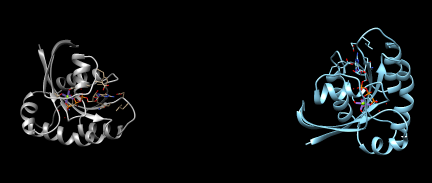

White:Input Blue:Output

Gravity Centre(CA)

Atom far from Centre(CA)

Atom far from Centre(CA, Axis)

1.037972e+02 2.611602e+01 1.072242e+02

3.286633e+01

20.84 31.41 23.78


-otxt 's data
REMARK Create Contour Surface of mrcImage
REMARK Create Surface of pdbFile
 START       0.00     0
   MAX       0.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     104.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     108.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     110.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     116.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     120.00       0.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START       1.00     1
 START       2.00     2
 START       3.00     3
 START       4.00     4

...

 START      71.00    71
 START      72.00    72
 START      73.00    73
   MAX     106.00      73.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      74.00    74
 START      75.00    75
 START      76.00    76
   MAX     106.00      76.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
   MAX     110.00      76.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      77.00    77
   MAX     110.00      77.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      78.00    78
   MAX     110.00      78.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      79.00    79
   MAX     112.00      79.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      80.00    80
 START      81.00    81
   MAX     114.00      81.00       0.00       0.00       0.00       0.00 (phi,z,psi,theta,x,y)
 START      82.00    82


In the following, Setting at C=1000
